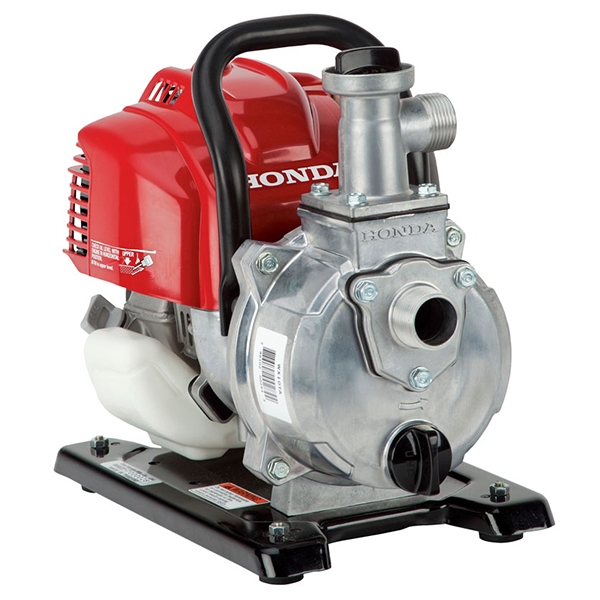

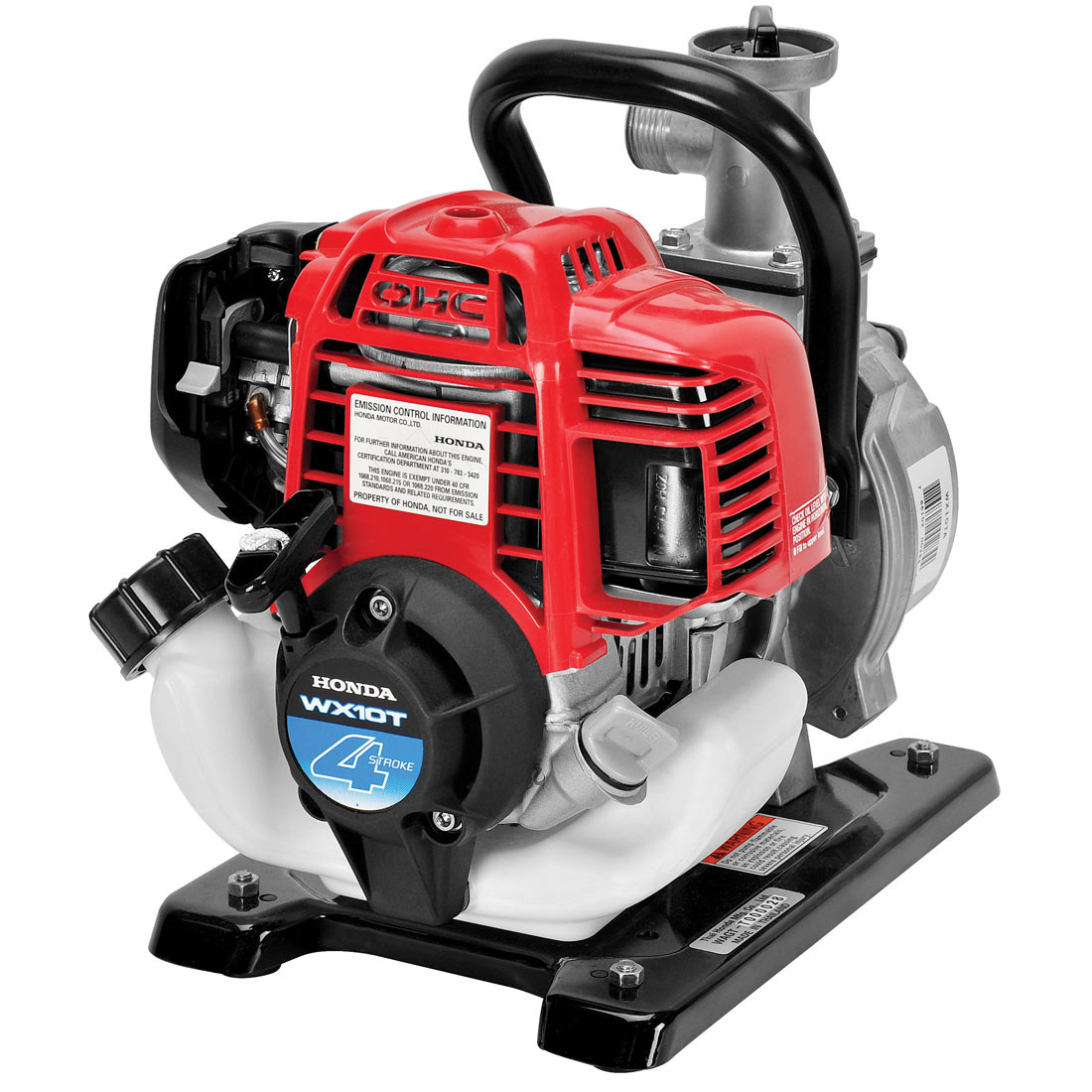

Honda WX10 1″ 32 GPM General Purpose Pump

Description

Honda WX10 1 Inch Lightweight Pump, 13 lb, 32 GPM

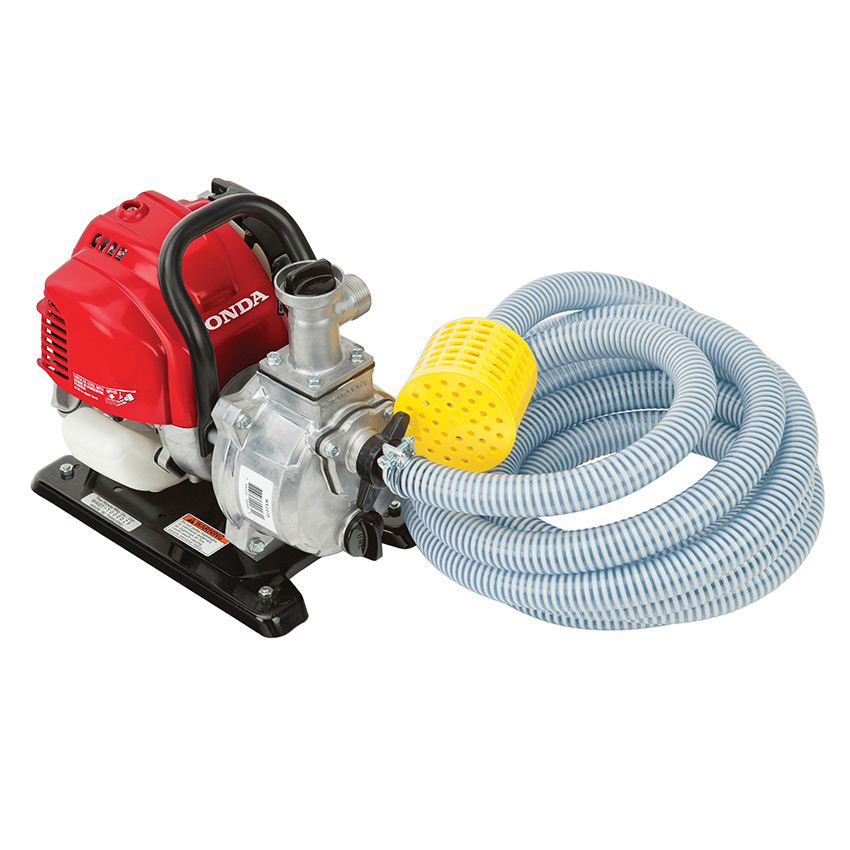

The WX10 is Honda’s smallest water pump, weighing just 13 lb and measuring 13.4 x 8.7 x 11.6 inches. Honda pitches it at homeowners, gardeners and boat owners, and it arrives with a garden hose adaptor, suction hose, clamps and strainer so it can go to work straight out of the box. A 25 cc GX25 mini 4-stroke engine runs it on straight unleaded gas.

Small Jobs, Done Easily

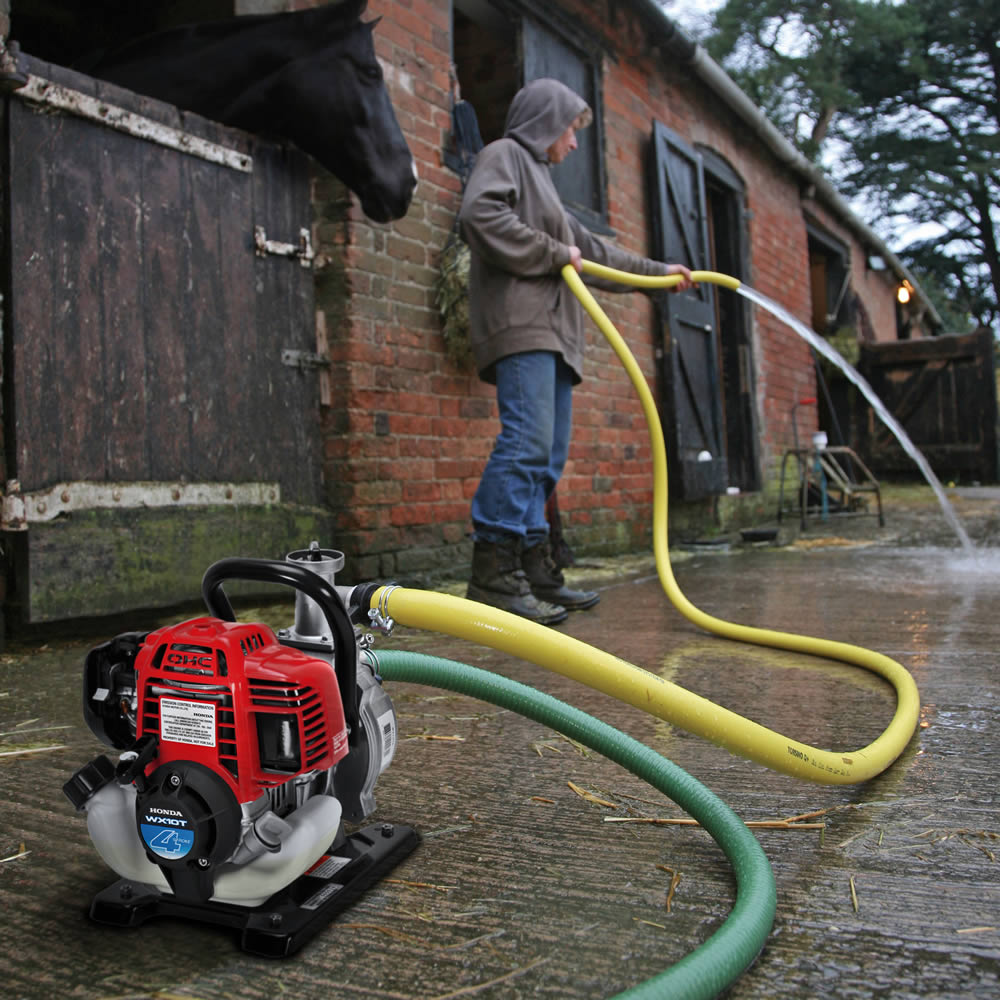

Watering a garden from a rain barrel or creek, draining a hot tub, emptying a boat’s bilge, or topping up a small pond are the WX10’s work. Its 32 gallon per minute flow is modest, but it reaches a 121 foot total head and 52 psi, enough to run a sprinkler or wash hose at useful pressure.

Pump and Engine

An aluminum volute and impeller keep the weight down, with a carbon and ceramic mechanical seal. The self-priming pump primes in around 80 seconds at 16.4 feet and draws from up to 26 feet below. The GX25 needs no fuel mixing.

WX10 Specifications

• Capacity 32 gal/min; 1 in NPT ports
• Total head 121 ft; suction lift 26 ft; 52 psi
• Engine Honda GX25, 25 cc
• Fuel 0.56 qt; run time 0.9 hour at maximum output
• Dry weight 13 lb
• Warranty: 2 years residential, 1 year commercial

Salt Water Rinse

After pumping salt or brackish water from a boat or dock, run fresh water through the pump for a few minutes. Aluminum parts last much longer when salt is not left to dry inside.

Need More Flow?

The WX15 more than doubles the flow to 74 gal/min at 20 lb, with 1.5 inch ports.
