Honda WT30 3″ 317 GPM Trash Pump

Description

Honda WT30 3 Inch Trash Pump, 317 GPM with 1 1/16 Inch Solids

The WT30 is a 3 inch trash pump for excavations, trenches and flooded job sites where the water is thick with mud and stones. It moves up to 317 gallons per minute and passes solids up to 1 1/16 inch, driven by the 270 cc GX270 commercial engine with Oil Alert. Its 1.4 gallon tank keeps it working 1.5 hours at full discharge.

Larger Solids, Fewer Stoppages

Passing solids up to 1 1/16 inch, against 13/16 inch on the WT20, means fewer clogs when dewatering a footing excavation after rain or clearing a flooded basement full of debris. The conical cast iron impeller and wide vanes resist wear, and the replaceable stainless wear plate on the cast iron volute absorbs abrasion that would otherwise wear the casing.

Site-Friendly Details

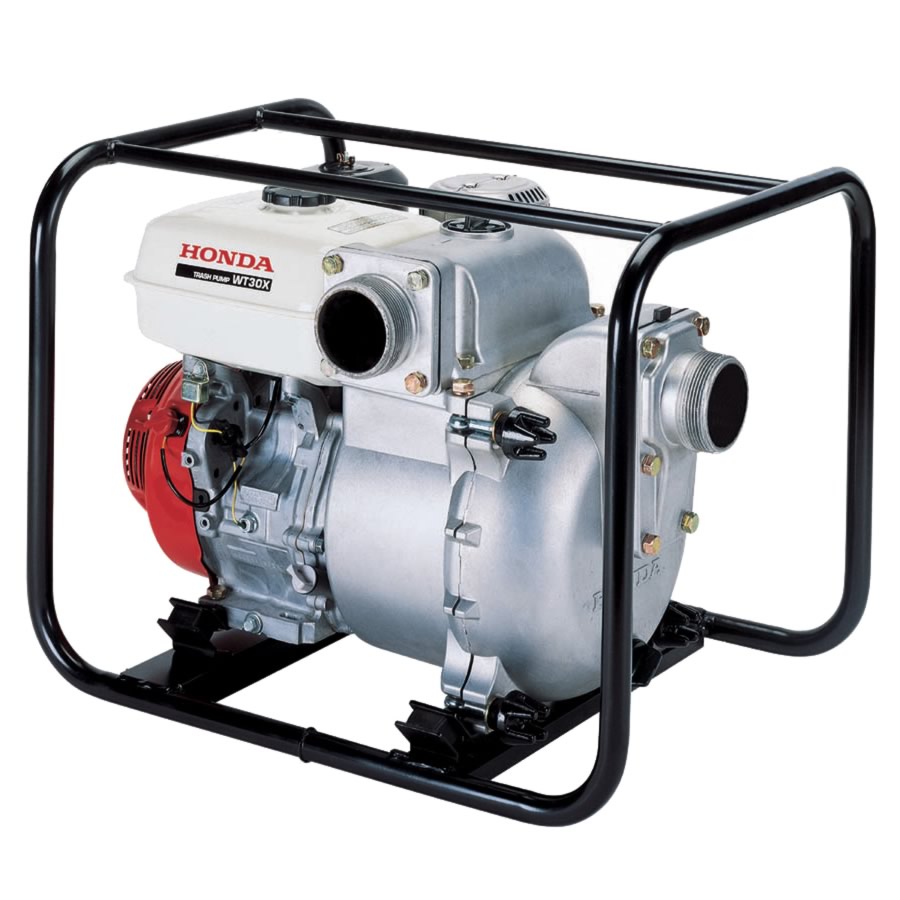

A heavy-duty full frame protects the pump and gives tie-down points for transport. Isolation mounts reduce vibration so the pump stays where it is set, even on soft ground. A quick clean-out port and Honda’s supplied multi-tool make clearing a blockage a short job.

WT30 Measurements and Ratings

• Flow 317 gal/min; 3 in suction and discharge
• Solids handling up to 1 1/16 in
• Total head 82 ft; suction head 26 ft; maximum 36 psi
• Priming 90 seconds at 16.4 ft
• Dimensions 26.0 x 19.5 x 20.3 in; dry weight 134 lb
• Warranty: 2 years residential, 1 year commercial

Discharge Where It Will Not Return

Run the discharge hose well away from the excavation and downhill, onto ground that can take the water or into an approved drain. Water pumped to the edge of a hole often finds its way straight back in.

WT30 Against the Other Trash Pumps

The WT20 is lighter at 104 lb for smaller holes. Large excavations and flooded sites need the WT40, with 423 gal/min.
