Woods Dual-Spindle Cutters DS10.40

Description

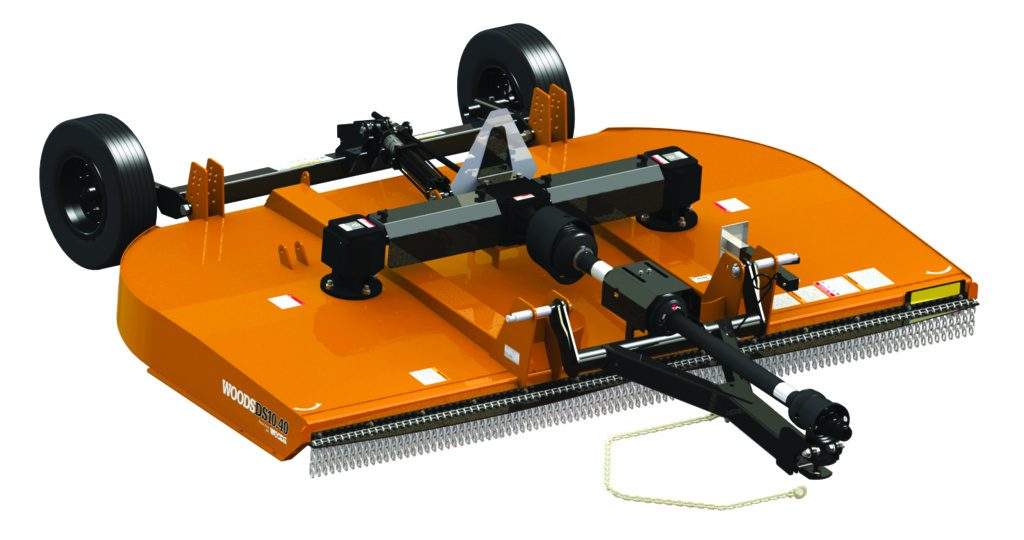

Woods Dual-Spindle Cutters DS10.40

The Woods DS10.40 is a Dual-Spindle Cutters attachment engineered with a 120-inch working width, built to deliver reliable performance across demanding operating conditions. Rated as professional quality within the Woods lineup, this unit reflects the brand’s long-standing commitment to durability, serviceability, and operator convenience. It connects via a pivoting clevis hitch.

Woods Dual-Spindle cutters are purpose-built for high-productivity commercial and municipal cutting applications where a single-spindle cutter’s output is not sufficient. The twin-gearbox arrangement on the DS10.40 ensures that the full working width receives consistent blade tip speed, resulting in even mulching and clean cut edges across the entire pass.

Key Features

• Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
• EZ-Change™ Blade System allows blade change in five steps with a 3/4 wrench. No impact gun or torch required.
• I looked at this product to buy at Java Farm Supply and have decided it’s a great machine for my farm.
• Does an excellent job keeping farm clean

Design and Construction

As a Professional-tier product, the DS10.40 occupies a well-defined position in the Woods equipment range – engineered for operators whose work demands more than entry-level durability without requiring the most extreme heavy-duty specification. The dual-spindle arrangement positions two separate gearboxes and blade systems across the cutting width, ensuring that blade tip speed and cutting consistency remain uniform from one side of the deck to the other. The EZ-Change blade system makes swapping worn or damaged blades a five-step process using only a 3/4 wrench – no impact gun, torch, or specialist tools required.

Specifications

• Product Tier: Professional
• Tractor PTO (Minimum HD): 40
• Tractor PTO Speed (rpm): 540
• Hitch: pivoting clevis
• Hydraulic Variable Offset: N/A
• Cutting Width (in): 120
• Cutting Capacity Diameter (in): 2
• Adjustable Cutting Height (in): 2 – 12
• Blade Tip Speed (fpm): 16,700
• Blade Size (in): .5 x 4
• Deck Side Depth | Thickness (in): 10 deep, .135 thick
• Weight (lbs): 1,820
• Wheel Selection: Laminated, severe-duty new ag; foam filled new ag, 15 rims
• Gearbox Rating: 120 center, 90 spindle *Gearbox horsepower ratings listed are based on field testing.
• Optional Dual-Wheels: No
• Driveline w/Slip Clutch: CAT 4 CV
• Quick-hitch Compatible: Yes
• Gearbox Warranty: 10 years
• Structure Warranty: 2 years

Compatibility and Mounting

The DS10.40 is designed to be compatible with a wide range of tractor makes and models. Mounting uses a pivoting clevis hitch configuration. PTO input speed is 540 rpm. Operators should verify tractor specifications against the product requirements before purchase to ensure correct matching of hydraulic flow, lift capacity, and PTO output.

Applications

Dual-spindle cutters like the DS10.40 are built for high-output operations such as large pasture management, highway right-of-way maintenance, and commercial land clearing contracts. The twin-spindle arrangement provides superior cut quality and mulching capability across wide swaths, reducing the need for additional passes. Government agencies, commercial mowing contractors, and large farming operations rely on this class of equipment where consistent, high-quality results across hundreds of acres are required.

Warranty

The Woods DS10.40 is covered by a 10-year warranty including parts, labor, and seals.

Woods Equipment Heritage

Woods Equipment Company has been manufacturing tractor attachments in the United States for over 75 years. The company’s focus on commercial-grade durability, broad tractor compatibility, and dealer-supported serviceability has made it a trusted name among farmers, municipalities, contractors, and landowners across North America. Every product in the Woods lineup is designed to be serviced through an authorized dealer network, ensuring that replacement parts and technical support are accessible when needed.

Blade Maintenance and Safety

Rotary cutting equipment requires regular blade inspection and replacement to maintain safe operation and cut quality. Operating with worn, cracked, or unbalanced blades increases vibration, reduces cutting performance, and creates a safety hazard. Woods recommends inspecting blades before each use, replacing blades in matched sets to maintain balance, and following all safety guidelines in the operator’s manual regarding bystander clearance distances and personal protective equipment.

Dealer Support and Parts Availability

The DS10.40 is supported by the Woods dealer network across the United States and Canada. Authorized dealers stock common replacement parts and can order the full range of factory components, ensuring that repairs can be completed with genuine parts that maintain the original engineering specifications. The dealer network also provides pre-delivery setup, warranty service, and technical assistance for questions about compatibility, operation, and maintenance.
