Woods Box Scrapers BS72.40

Description

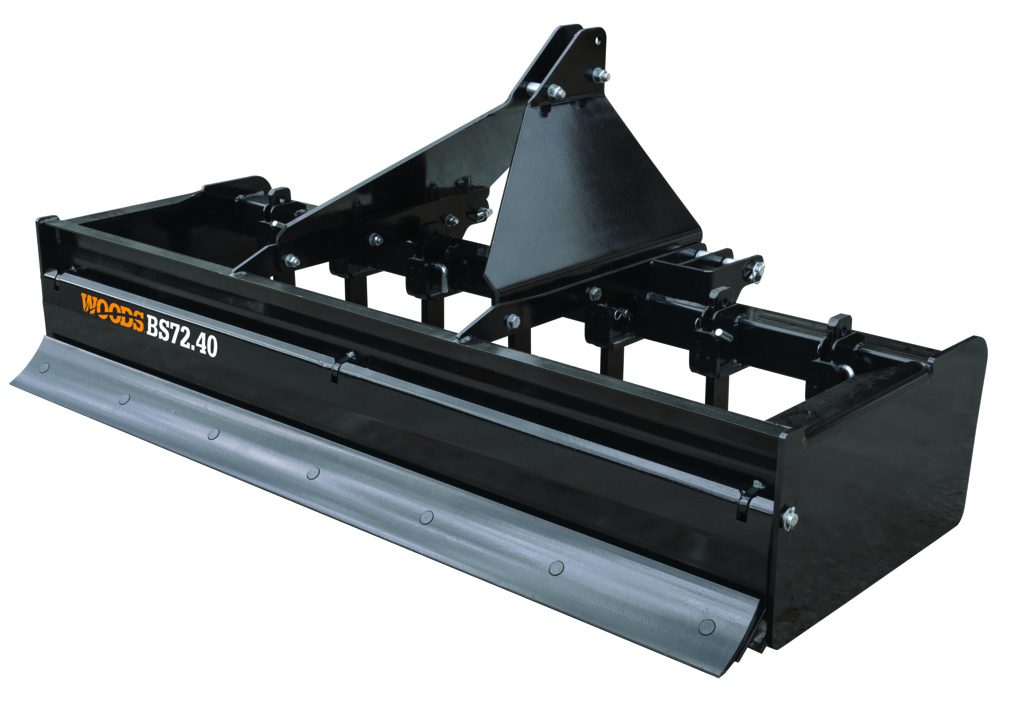

Woods Box Scrapers BS72.40

The Woods BS72.40 is a 72-inch grading and scraping attachment engineered for tractors ranging from 40-65 horsepower, providing reliable performance across demanding field conditions.

Rated as a Professional implement in the Woods lineup, this unit reflects the brand’s commitment to building attachments that hold up under real-world use.

The BS72.40 mounts using a CAT 1 and CAT 2 hitch configuration, making it compatible with a wide range of tractor brands and models commonly found on farms, estates, and commercial properties.

Among its standout characteristics, this grading and scraping attachment is noted for engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work, a quality that sets the BS72.40 apart from entry-level alternatives.

Key Features

• The BS72.40 is built around the principle that engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
• Operators benefit from a design feature where easily carve into sod and dirt with full-length, high-strength double beveled cutting edges.
• Field performance is further enhanced because a variety of widths to match a variety of jobs.
• Classified as a Professional attachment, the BS72.40 is engineered to a higher build standard than entry-tier implements, resulting in longer service life and reduced maintenance costs.
• The CAT 1 and CAT 2 hitch interface ensures broad tractor compatibility, allowing the BS72.40 to work with machines from major manufacturers without requiring additional adapters.
• A power requirement range of 40-65 HP makes the BS72.40 accessible to a range of tractor sizes, from mid-size utility tractors to larger row-crop machines.
• A 72-inch working width allows the BS72.40 to cover ground efficiently, reducing the number of passes needed to complete large areas.
• Woods backs the BS72.40 with engineering support from a company with extensive experience designing and manufacturing professional-grade tractor implements.

Specifications

The following specifications define the capabilities and operating parameters of the Woods BS72.40. These figures are drawn directly from Woods engineering documentation and should be used when evaluating compatibility with your specific tractor and application requirements.

• Product Tier: Professional
• Tractor Engine (HP): 40-65
• Tractor Hitch: CAT 1 and CAT 2
• Working Width (in): 72
• Capacity (cu. Ft): 19
• Approximate Weight (lbs): 660
• Scarifier Depth (in): 0, 1.5, 3
• No. of Scarifiers: 6
• Tailgate Type: Standard floating
• Cutting Edges: 2
• Scarifier Mount: Heavy-Duty saddle
• Woods C®: Compact/Subcompact
• Tractor Make: Tractor Model

Construction and Build Quality

Woods has built the BS72.40 to withstand extended use in demanding conditions. The frame and structural components are fabricated from high-strength steel, selected to provide the rigidity needed to maintain consistent performance over many seasons of use.

At the Professional tier, the BS72.40 incorporates component upgrades and material selections that bridge the gap between entry-level attachments and true industrial-grade equipment. This makes it well suited for operators who run their equipment frequently and depend on it commercially.

Protective coatings and finish treatments are applied to help the BS72.40 resist corrosion from soil contact, moisture exposure, and the chemical environments encountered during normal agricultural and commercial use. Routine maintenance requirements are kept straightforward to minimize downtime and keep the attachment working when you need it most.

Applications and Tractor Compatibility

The Woods BS72.40 is effective for driveway grading, leveling filled areas, backfilling, spreading gravel, and finish grading work across farm lanes and construction sites. The scraper blade geometry allows both cutting on the forward pass and spreading on the return, making it a versatile choice for general earthmoving tasks.

The CAT 1 and CAT 2 mounting system ensures broad tractor compatibility, and the attachment process is designed to be completed without specialized tools or additional hardware in most configurations.

Warranty

Woods stands behind the BS72.40 with warranty coverage consistent with its position in the product lineup. Many Woods rotary cutters and mowers carry a 10-year gearbox warranty along with a 2-year structural warranty, reflecting confidence in the engineering and manufacturing quality built into each unit.

Service and parts support for the BS72.40 is available through the nationwide Woods dealer network. Dealers maintain access to Woods genuine replacement parts, ensuring that warranty repairs and routine maintenance can be completed with components manufactured to the same specifications as the original equipment. Operators are encouraged to register their attachment at the time of purchase to ensure full warranty benefits are in place from the first day of use.

Woods recommends following the maintenance intervals outlined in the operator’s manual to preserve warranty coverage and maximize the service life of the BS72.40. Pre-season inspection, lubrication schedules, and periodic hardware checks are straightforward service tasks that keep this attachment performing at its designed capability.
