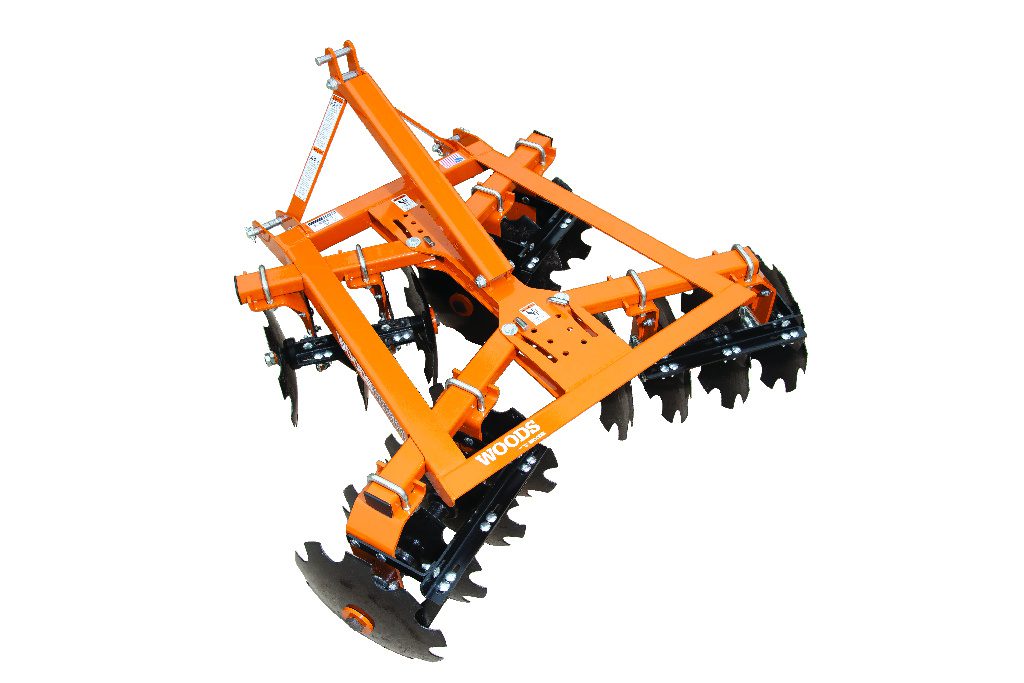

Woods Disc Harrows DHS64

Description

Woods Disc Harrows DHS64

The Woods DHS64 is a professional-grade disc harrow compatible with tractors in the 25-45 HP range, designed to handle challenging workloads season after season.

Rated as a Professional implement in the Woods lineup, this unit reflects the brand’s commitment to building attachments that hold up under real-world use.

The DHS64 mounts using a CAT 1 hitch configuration, making it compatible with a wide range of tractor brands and models commonly found on farms, estates, and commercial properties.

Among its standout characteristics, this disc harrow is noted for optional mud scrapers prevent clogging for increased productivity in challenging conditions, a quality that sets the DHS64 apart from entry-level alternatives.

Key Features

• The DHS64 is built around the principle that optional mud scrapers prevent clogging for increased productivity in challenging conditions.
• Operators benefit from a design feature where our unique tapered frame design balances individual disc gangs and only requires removing a single pin for easy disc angle adjustments. Quickly change your disc angle for more or less aggressive tillage to match your ideal seed bed.
• Field performance is further enhanced because some colors only available on select models.
• Classified as a Professional attachment, the DHS64 is engineered to a higher build standard than entry-tier implements, resulting in longer service life and reduced maintenance costs.
• The CAT 1 hitch interface ensures broad tractor compatibility, allowing the DHS64 to work with machines from major manufacturers without requiring additional adapters.
• A power requirement range of 25-45 HP makes the DHS64 accessible to a range of tractor sizes, from mid-size utility tractors to larger row-crop machines.
• Woods backs the DHS64 with engineering support from a company with extensive experience designing and manufacturing professional-grade tractor implements.

Specifications

The following specifications define the capabilities and operating parameters of the Woods DHS64. These figures are drawn directly from Woods engineering documentation and should be used when evaluating compatibility with your specific tractor and application requirements.

• Product Tier: Professional
• Tractor Engine (HP): 25-45
• Tractor Hitch: CAT 1
• Width (in): 64
• Average Weight (lbs) – depending on blade type: 508
• Disc Blade Type: Notched; or combination smooth and notched
• Average Weight Distribution per Blade (lbs): 36
• Disc Diameter (in): 18
• Disc Quantity: 14
• Disc Spacing (in): 9 front, 7.5 rear
• Frame Construction (in): 3 x 3 tube and angle
• Gang Axle Diameter (in): 1 square
• Quick-hitch Compatible: Yes
• Woods C®: Compact/Subcompact
• Tractor Make: Tractor Model

Construction and Build Quality

Woods has built the DHS64 to withstand extended use in demanding conditions. The frame and structural components are fabricated from high-strength steel, selected to provide the rigidity needed to maintain consistent performance over many seasons of use.

At the Professional tier, the DHS64 incorporates component upgrades and material selections that bridge the gap between entry-level attachments and true industrial-grade equipment. This makes it well suited for operators who run their equipment frequently and depend on it commercially.

Protective coatings and finish treatments are applied to help the DHS64 resist corrosion from soil contact, moisture exposure, and the chemical environments encountered during normal agricultural and commercial use. Routine maintenance requirements are kept straightforward to minimize downtime and keep the attachment working when you need it most.

Applications and Tractor Compatibility

Disc harrows like the Woods DHS64 are used for primary and secondary tillage work including stubble incorporation, soil breaking after initial plowing, and seedbed preparation. The disc configuration provides effective penetration across varying soil conditions and residue levels.

The CAT 1 mounting system ensures broad tractor compatibility, and the attachment process is designed to be completed without specialized tools or additional hardware in most configurations.

Warranty

Woods stands behind the DHS64 with warranty coverage consistent with its position in the product lineup. Many Woods rotary cutters and mowers carry a 10-year gearbox warranty along with a 2-year structural warranty, reflecting confidence in the engineering and manufacturing quality built into each unit.

Service and parts support for the DHS64 is available through the nationwide Woods dealer network. Dealers maintain access to Woods genuine replacement parts, ensuring that warranty repairs and routine maintenance can be completed with components manufactured to the same specifications as the original equipment. Operators are encouraged to register their attachment at the time of purchase to ensure full warranty benefits are in place from the first day of use.

Woods recommends following the maintenance intervals outlined in the operator’s manual to preserve warranty coverage and maximize the service life of the DHS64. Pre-season inspection, lubrication schedules, and periodic hardware checks are straightforward service tasks that keep this attachment performing at its designed capability.
