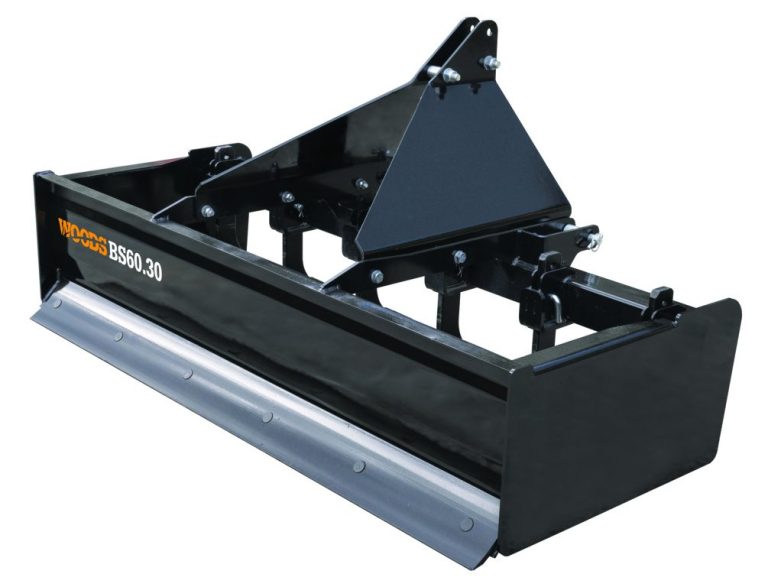

Woods Box Scrapers BS60.30

Description

Woods Box Scrapers BS60.30

The Woods BS60.30 is a 60-inch grading and scraping attachment engineered for tractors ranging from 25-45 horsepower, providing reliable performance across demanding field conditions.

Rated as a Standard plus implement in the Woods lineup, this unit reflects the brand’s commitment to building attachments that hold up under real-world use.

The BS60.30 mounts using a CAT 1 hitch configuration, making it compatible with a wide range of tractor brands and models commonly found on farms, estates, and commercial properties.

Among its standout characteristics, this grading and scraping attachment is noted for engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work, a quality that sets the BS60.30 apart from entry-level alternatives.

Key Features

• The BS60.30 is built around the principle that engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
• Operators benefit from a design feature where easily carve into sod and dirt with full-length, high-strength double beveled cutting edges.
• Field performance is further enhanced because a variety of widths to match a variety of jobs.
• Classified as a Standard plus attachment, the BS60.30 is engineered to a higher build standard than entry-tier implements, resulting in longer service life and reduced maintenance costs.
• The CAT 1 hitch interface ensures broad tractor compatibility, allowing the BS60.30 to work with machines from major manufacturers without requiring additional adapters.
• A power requirement range of 25-45 HP makes the BS60.30 accessible to a range of tractor sizes, from mid-size utility tractors to larger row-crop machines.
• A 60-inch working width allows the BS60.30 to cover ground efficiently, reducing the number of passes needed to complete large areas.
• Woods backs the BS60.30 with engineering support from a company with extensive experience designing and manufacturing professional-grade tractor implements.

Specifications

The following specifications define the capabilities and operating parameters of the Woods BS60.30. These figures are drawn directly from Woods engineering documentation and should be used when evaluating compatibility with your specific tractor and application requirements.

• Product Tier: Standard plus
• Tractor Engine (HP): 25-45
• Tractor Hitch: CAT 1
• Working Width (in): 60
• Capacity (cu. Ft): 15.6
• Approximate Weight (lbs): 510
• Scarifier Depth (in): 0, 1.5, 3
• No. of Scarifiers: 5
• Tailgate Type: Fixed
• Cutting Edges: 2
• Scarifier Mount: Heavy-Duty saddle
• Woods C®: Compact/Subcompact
• Tractor Make: Tractor Model

Construction and Build Quality

Woods has built the BS60.30 to withstand extended use in demanding conditions. The frame and structural components are fabricated from high-strength steel, selected to provide the rigidity needed to maintain consistent performance over many seasons of use.

Every structural weld and component fitting on the BS60.30 is engineered to meet Woods’ internal quality standards, which are informed by decades of feedback from professional operators across North America.

Protective coatings and finish treatments are applied to help the BS60.30 resist corrosion from soil contact, moisture exposure, and the chemical environments encountered during normal agricultural and commercial use. Routine maintenance requirements are kept straightforward to minimize downtime and keep the attachment working when you need it most.

Applications and Tractor Compatibility

The Woods BS60.30 is effective for driveway grading, leveling filled areas, backfilling, spreading gravel, and finish grading work across farm lanes and construction sites. The scraper blade geometry allows both cutting on the forward pass and spreading on the return, making it a versatile choice for general earthmoving tasks.

The CAT 1 mounting system ensures broad tractor compatibility, and the attachment process is designed to be completed without specialized tools or additional hardware in most configurations.

Warranty

Woods stands behind the BS60.30 with warranty coverage consistent with its position in the product lineup. Many Woods rotary cutters and mowers carry a 10-year gearbox warranty along with a 2-year structural warranty, reflecting confidence in the engineering and manufacturing quality built into each unit.

Service and parts support for the BS60.30 is available through the nationwide Woods dealer network. Dealers maintain access to Woods genuine replacement parts, ensuring that warranty repairs and routine maintenance can be completed with components manufactured to the same specifications as the original equipment. Operators are encouraged to register their attachment at the time of purchase to ensure full warranty benefits are in place from the first day of use.

Woods recommends following the maintenance intervals outlined in the operator’s manual to preserve warranty coverage and maximize the service life of the BS60.30. Pre-season inspection, lubrication schedules, and periodic hardware checks are straightforward service tasks that keep this attachment performing at its designed capability.
