Brown Products F-1202 Heavy-Duty TrenchMaster F-1202

Description

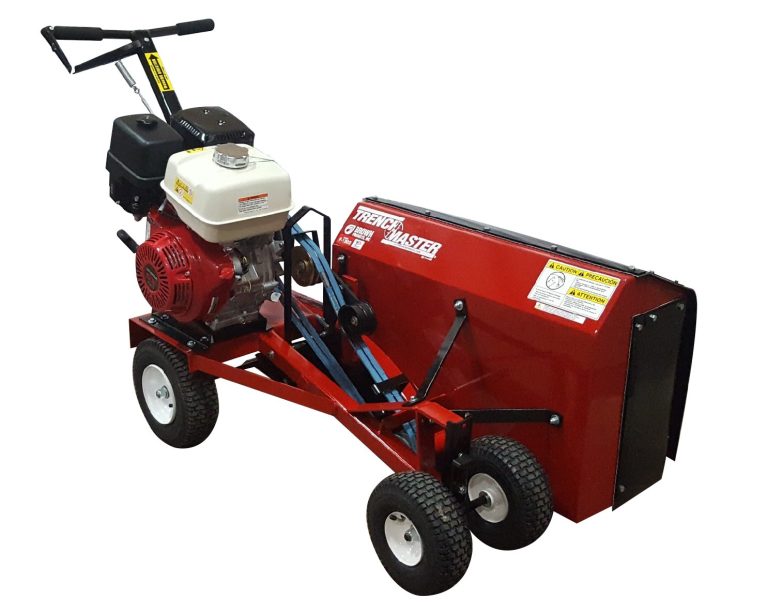

Brown Products F-1202 TrenchMaster Heavy-Duty Trencher

The Brown Products F-1202 TrenchMaster represents the top of the TrenchMaster product line, purpose-built for heavy commercial projects that demand deeper cuts, wider trenches, and the structural durability to run continuously in demanding soil conditions. Powered by a Honda GX390 engine coupled to a purpose-designed gearbox, and weighing 315 pounds, the F-1202 brings a level of digging performance to the walk-behind trencher category that is otherwise only found in much larger equipment.

Heavy Commercial Performance

Where the F-704 and F-904 serve lighter and mid-range trenching tasks, the F-1202 is designed for heavy commercial projects where compact tractors or ride-on machines are impractical. The GX390 engine with gearbox delivers sustained high-torque output through the most demanding soil conditions, including dense clay, rocky fill, and compacted subsoil. At a cutting depth of up to 12 inches and a cutting width of 3 inches, the F-1202 opens trenches suitable for larger irrigation mainlines, conduit bundles, and heavier drainage installations.

Engine Configuration

• Honda GX390 with purpose-matched gearbox

The gearbox configuration provides mechanical advantage for deeper cutting, translating engine output into the sustained rotor torque needed for 12-inch depth operations in difficult soil conditions.

Key Features

• Deepest cutting depth in the TrenchMaster lineup at up to 12 inches
• 3-inch cutting width for larger trench profiles
• Interchangeable tungsten carbide rotor points in multiple configurations
• Double belt and pulley drive system with gearbox for sustained torque
• Standard clay hood to reduce soil build-up during operation
• Fully enclosed rotors for operator safety
• Low-profile frame for maximum stability
• Clutch lever for immediate rotor shutoff
• Pull-unit design with leg geometry to reduce operator fatigue
• Minimum turf disturbance for cleaner job sites
• 1-year limited warranty: commercial and rental

Performance Specifications

• Trenching rate: up to 20 feet per minute depending on soil conditions
• Maximum cutting depth: 3 to 12 inches (rotor and soil dependent)
• Cutting width: 3 inches
• Machine weight: 315 lbs
• Wheels: Steel with pneumatic tires
• Rotor points: Tungsten carbide
• Shipping method: Motor freight, pre-assembled

Rotor Options

The F-1202 uses a dedicated rotor family sized for its wider 3-inch cutting profile, with available depths from 7 to 13 inches. Both 5-point and 7-point clay rotors are available across all depth sizes, as well as RainDrain rotors for wide-profile drainage channel cutting at depths from 8 to 12 inches. The rotor change process requires the removal of one nut, enabling fast field transitions between rotor types and depths.

Applications

• Large-diameter irrigation mainline installation
• Conduit and multi-cable bundle burial
• Deep drainage channel cutting on commercial properties
• Utility line installation in compacted or clay-heavy soils
• Heavy root pruning around established trees
• Commercial landscape renovation projects requiring deep trenching

Build Quality

Manufactured in Midland City, Alabama, the F-1202 is built to withstand the rigors of daily heavy commercial use. Despite its 315-pound operating weight, the machine is designed for single-person operation and ships fully pre-assembled via motor freight. Service access to the drive system and rotor mount is designed for field maintenance without specialized tooling, supporting low downtime in high-utilization rental and commercial environments.

Shipping and Service

The F-1202 TrenchMaster ships fully pre-assembled via motor freight from the Brown Products manufacturing facility in Midland City, Alabama. Upon delivery, the machine is ready for immediate field deployment. The rotor change procedure requires removal of a single nut, enabling quick field transitions between rotor types and depth configurations without specialized tools. The belt drive system is accessible for standard inspection and tension adjustment, and the full range of F-1202-specific rotors, belts, and service components is available through the Brown Products authorized dealer network. Brown Products backs the F-1202 with a 1-year limited warranty covering commercial and rental use, reflecting the machine’s design for sustained high-cycle professional operation.
