Brown Products E-104 5.5HP EdgeMaster Commercial Edger E-104

Description

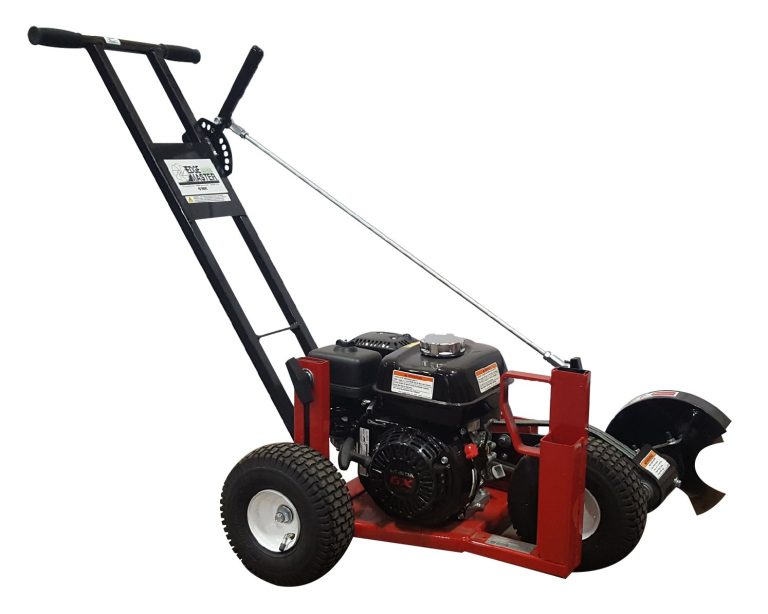

Brown Products E-104 EdgeMaster Commercial Edger

The Brown Products E-104 EdgeMaster is a heavy-duty walk-behind commercial edger designed for large property managers, municipalities, and rental operators who require a machine built to withstand years of daily use and abuse in demanding conditions. All-steel construction, an oversized hollow spindle with large-format industrial bearings, and a blade mounting system that protects the spindle from shock damage distinguish the E-104 from lighter-duty alternatives in the commercial edging market.

Built for Commercial and Rental Durability

The E-104 was specifically developed with the rental industry in mind. Unlike residential and light-commercial edgers that are constructed with lighter materials and smaller bearings, the E-104 uses structural steel throughout its frame, a 1-inch hollow spindle with industrial-grade bearings sized for long wear life, and a 1/2-inch Grade 8 shear bolt for blade mounting. The shear bolt design is a deliberate safety and protection measure: if the blade contacts a buried obstacle, the bolt shears to protect the spindle before any structural damage can occur. Replacement of the shear bolt is a quick, inexpensive field repair.

Engine Options

• Honda GX160 at 5.5 HP
• Kohler CH255 at 5.5 HP

Key Features

• Heavy-duty all-steel construction throughout
• 1-inch hollow spindle with large industrial-grade bearings for extended service life
• 1/2-inch Grade 8 shear bolt blade mount protects the spindle
• Dual-purpose tensioner lever engages blade and adjusts blade depth in one motion
• Solid steel control rod for positive, direct operator feedback
• Semi-enclosed blade guard for operator safety
• Low-profile frame for maximum stability on varied terrain
• Pull-unit configuration with leg geometry to reduce fatigue
• Clutch lever for instant blade power cutoff
• Adjustable curb wheels for working along curbs up to 10 inches tall
• Minimum turf disturbance for clean, professional results
• 1-year limited warranty: commercial and rental

Performance Specifications

• Machine weight: 115 lbs
• Drive system: Double belt
• Construction: Structural steel
• Clutch system: Double belt idler
• Blade size: Up to 10 inches
• Maximum curb height: 10 inches
• Bearings: 1-inch industrial
• Blade mount: 1/2-inch Grade 8 bolt
• Tool holder: 3-inch steel tubing
• Wheels: Steel with pneumatic tires
• Shipping method: Motor freight, pre-assembled

Adjustable Depth and Curb Versatility

The dual-purpose tensioner lever on the E-104 serves two functions simultaneously: it engages the blade and controls cutting depth. This integrated design simplifies depth adjustment during operation and reduces the number of separate controls the operator must manage. The adjustable curb wheels allow the machine to track cleanly along concrete curbs from standard 4-inch curbs up to 10-inch curbs, making the E-104 well suited for commercial streetscape and parking lot edging applications where curb height varies.

Applications

• Commercial and municipal sidewalk and curb edging
• Large property bed edge maintenance
• Parking lot and streetscape edging programs
• High-volume rental fleet edging operations
• Athletic field edge definition and maintenance

Manufacturing and Service

The E-104 EdgeMaster is designed and manufactured in Midland City, Alabama, USA, and ships pre-assembled via motor freight. The machine is engineered for straightforward field maintenance, with accessible belt drive components and a spindle design that is replaceable without full disassembly of the cutting deck. Brown Products supports the E-104 with a nationwide dealer network for replacement blades, belts, and service parts.

Long-Term Cost of Ownership

The E-104 is engineered to minimize long-term operating costs in commercial and rental fleets. The 1-inch hollow spindle with industrial-grade bearings is designed for far longer service life than the smaller spindles used in residential-grade edgers. When the shear bolt shears on obstacle contact, the replacement is a standard Grade 8 bolt available from any industrial fastener supplier, not a specialized part. Blades are available in sizes up to 10 inches through the Brown Products dealer network, and the double belt clutch system uses standard V-belts that are widely available in the field. These design choices keep maintenance costs low and machine availability high over years of daily professional use.
